GlobalSign Trust Hierarchy for ExtendedSSL

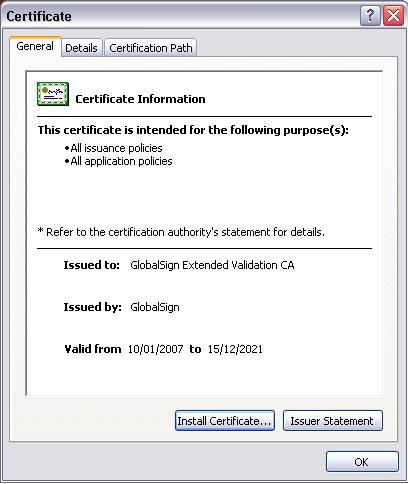

IMPORTANT NOTE: For your ExtendedSSL certificate to work on all browsers transparently you must download and install the Intermediate Root CA (named "Extended Validation CA") and the Cross Certificate using the instructions corresponding to your web server. If you have not already copied the Extended Validation CA Certificateand the Cross Certificate to your web server, click here to do so now.

Root Certificate Install Instructions

For Install instructions of the root certificates for your ServerSign SSL Certifcate, please select your web server from the following:

IIS 4, IIS 5 & IIS 6
Apache
Stronghold
Netscape iPlanet
IBM Websphere
Lotus Domino

Right click and Save As the following file: Apache EV SSL Bundle File

- Rename the apache_ev_bundle.txt file to apache_ev_bundle.crt

- Save the file to apache/conf/ssl/ - when installed the directory will look like: apache/conf/ssl/apache_ev_bundle.crt

- STOP your apache server.

- Locate the httpd.conf file and open it in a text editor

- Locate the SSLCaCertificateFile directive in the httpd.conf file and remove the leading # from the line.

- Modify the path at the end of the line to reference the location where you saved the apache_ev_bundle.crt file.

For example: SSLCaCertificateFile /usr/local/ apache/conf/ssl/apache_ev_bundle.crt

- Restart Apache

Stronghold needs to have access to the chain of certificates of the CA (certificate authority) that signed the certificate. These certificates are placed by GlobalSignas defualt in the in a file that contains several PEM encoded certificates :

If the file client-rootcerts.pem does not contain the GlobalSign certificates, then please download them from the following: Here

Installing the GlobalSign Root CA

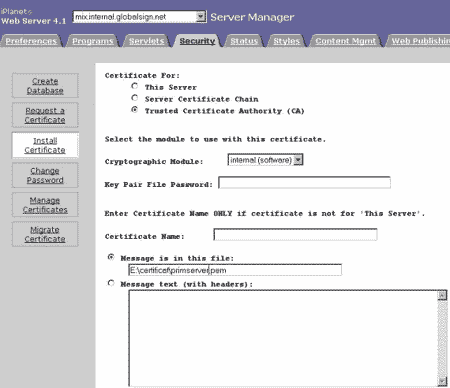

1. Select SECURITY
2. In INSTALL CERTIFICATE: select TRUSTED CERTIFICATION AUTHORITIES
3. Select CRYPTOGRAPHIC MODULE: internal (software)
4. In "Message is in this file: enter the Path to the local file in PEM format which contains the Extended Validation CA certificate.
5. In CERTIFICATE NAME: Enter a friendly name for this certificate: for exampleExtended Validation CA certificate




6. Repeat this for the Cross Certificate

Before you can add your certificate into the keystore, you must first include the GlobalSign's Certificates chain for the Product you chose. For instance, if you choose for Secure Server, you have to install public certificates. They can be found Here.

You can add this certificates chain from the Signer Certificates screen as shown below:



Click on the Add button. A dialog box asking will appear where you have to enter the Data type (Base64-encoded ASCII data), the Certificate file name (the certificate file you received from GlobalSign) and its location. Once all of these information are entered, just click on OK

Lotus Domino Root Certificate Install

You must install the GlobalSign Root certificates into the Server Certfiicate Admin application. Download the .PEM files - can be found here.

For each of the root certfiicates, copy the content in the clipboard - i.e:

-----BEGIN CERTIFICATE-----
CERT
-----END CERTIFICATE-----

You have then to paste it in the Server Certificate Admin application. You may check if they are considered as Trusted Root (they must be) in the View & Edit Key Rings main entry (left on the main screen). If they are not, double click on the certificate that you want to manage and enable this option.
