Install SSL Certificate in Internet Information Services (IIS) 7

Global Support Centre > SSL Certificates > IIS 7 > Install SSL Certificate

When you receive your SSL certificate, save it to your server with an extension of .crt. The location is not important, but you will need to locate the file at a later stage, so keep it somewhere you can find it.

Open Internet Information Services 7.0 (IIS 7.0)

Click Start
Open Control Panel
Select Administrative Tools
Start Internet Services Manager

Click Server Name

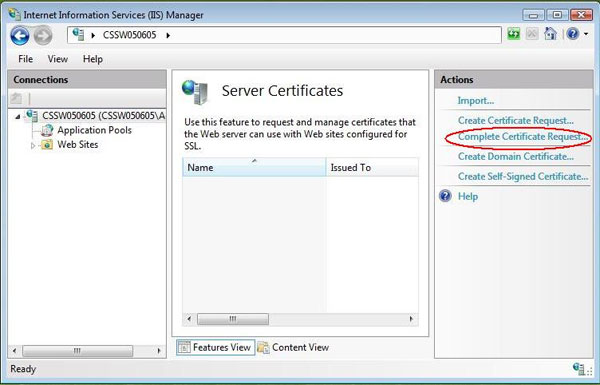

From the centre menu, double-click “Server Certificates” in the “Security” section.

Select the “Actions” menu from the right and click on “Complete Certificate Request”

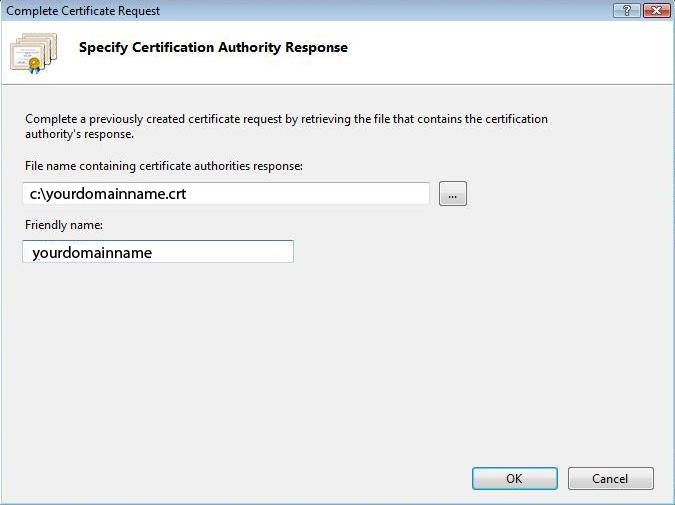

The Complete Certificate Request wizard will appear

In the wizard, enter the location and name of the SSL certificate you saved to your server earlier and then enter a Friendly Name. The Friendly Name is not part of the certificate itself, but is used by the server administrator to easily distinguish the certificate, then click OK

After the certificate has been successfully installed to the server, you will need to assign that certificate to the appropriate website using IIS.

From the “Connections” menu in the main Internet Information Services (IIS) Manager window, select the name of the server to which the certificate was installed
Under “Sites”, select the site to be secured with SSL.

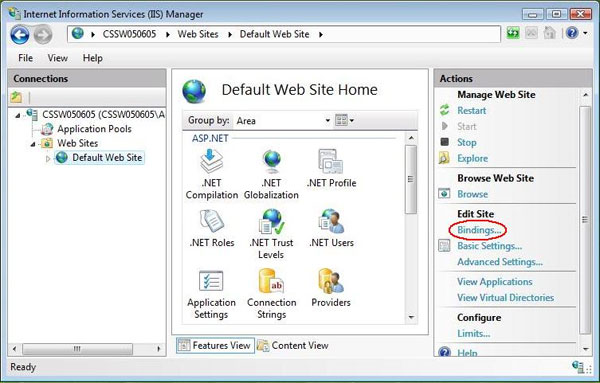

From the “Actions” menu on the right click on “Bindings”.

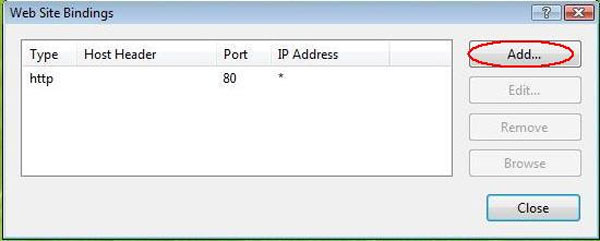

The “Site Bindings” window will open.

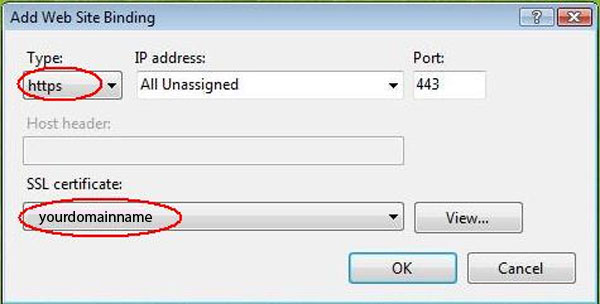

In the “Site Bindings” window, click “Add”. This will open the “Add Site Binding” window.

Under “Type” choose https. The IP address should be the IP address of the site or All Unassigned, and the port over which traffic will be secured by SSL is usually 443. The “SSL Certificate” field should specify the certificate that was installed previously.
Click OK

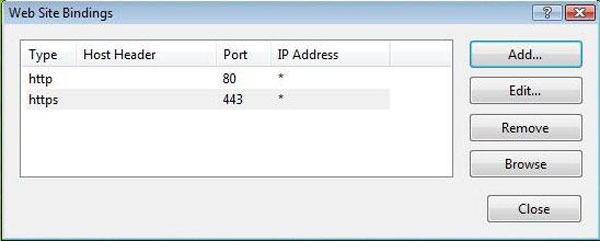

Now your SSL certificate is installed, you MUST restart IIS to complete the operation
